Chandlery   >   Fuel Filters
Click for larger image
FP 400 Turbo Fuel Purifier
Sale Price $0.00



                        Heater

Eliminates all water from the fuel system, thus avoiding time-consuming breakdowns while preventing the formation of damaging sulfuric acid.

Click here for a demonstration video...

  • Removes all solid particles from the fuel system, including oxides, dirt, rubbish, and all other impurities with a density greater than that of the fuel itself.
  • Preheats the paraffin contained in all fuel, providing superior lubrication of the entire fuel system including the injector pump, injectors and cylinder walls. (Heater-optional part)

ECONOMIC BENEFITS

Economic Benefits
  • Cleaner fuel will increase fuel economy.
  • Reduces down time.
  • Extends the life of the primary filter.
  • Protects and extends the life of the engine.
  • No internal or external parts requiring service or replacement.



ECOLOGICAL BENEFITS

Ecological Benefits
  • Increases the operating life of fuel filters.
  • The major component of fuel filters is paper. Use of an RCI Technologies fuel purifier results in fewer trees being cut each year.
  • Reduction in landfill due to fewer fuel filter replacements.
  • Providing fuel that is free of water and suspended particulates is the first step in exhaust emissions control.
  • Significant improvements in exhaust emissions. Tests on the RCI Technologies fuel purifier show that smoke emissions were reduced by 17.3%, carbon monoxide emissions by 10.4%, and nitrogen oxides by 5.9%.

Throw away your knee pads!!

Purging the FP 400 is unbelievably simple: put a cup under the included 1/2" drain valve, turn the handle and empty the water and dirt into your cup - or - run a line down to a larger receptacle for occassional removal. No bleeding out air in your lines - no mess - no Knee Pads!

Clean your fuel while underway!

If your sailing along - why not clean your fuel?  Simply bypass the engine with the installation of a few simple and inexpensive valves. Create a closed loop from the tank, through your FP 400 Turbo Purifier, your other catridge filters, and back to the tank!  Turn on your fuel pump and clean your fuel while you enjoying your sail - Your optional sensor alarm kit will alert you when you need to purge the purifier!


"If you are a cruiser sailor - this is a very important "must have" item!              We give these products our highest recommendation - they really work and it is no wonder that the US Military and so many others use these purifiers!"                                David Doyle - Founder - Doyle Marine


The FP 400 Turbo Fuel Purifier is a unique product utilizing a threestage
purification process using two well-known fuel separation principles,
centrifugal and coalescence.
By using these two principles, water and other
contaminants are separated from the fuel. This eliminates fuel filter clogging,
related breakdowns, down time, and frequent filter replacements.
As the fuel enters the purifier, it flows downward in a circular movement
through a internal baffle system entering the lower chamber of the purifier.
In the first stage of purification, the velocity of the fuel slows down considerably,
allowing any free water droplets and other contaminants to maintain
their mass and not emulsify with the fuel. These impurities accumulate and
remain at the bottom of the purifier until purged.
In the second stage of purification, the fuel migrates through three perforated
baffle plates to stop any particulates and attract, by way of coalescence, any
water droplets still remaining.
In the final stage of purification, the fuel passes through our patented coalescence
medium to assure that any small water droplets or particulates will be
coalesced out of the fuel stream. Only the clean fuel rises to the top, providing
a cleaner burning fuel for quicker ignition and better combustion. Consistent
clean fuel helps to increase the engine’s dependability, power, and efficiency.
On the FP-50, FP-80, FP-400 and FP-700, a heating element is optional to
preheat the fuel. This process helps liquefy the paraffin providing better lubrication
for the entire fuel system including the pump and injectors. This heating
element eliminates any wax or gelling problems.



Engine Benifits:

Eliminates all water from the fuel system, thus avoiding time consuming
break downs while preventing the formation of damaging sulfuric acid.

Removes all solid particles from the fuel system, including oxides, dirt,
rubbish, and all other impurities with a density greater than that of the fuel
itself.

Preheats the paraffin contained in all fuel, providing superior lubrication of
the entire fuel system including the injector pump, injectors and cylinder
walls. (Heater-optional part)

ECONOMIC BENEFITS
Reduces down time.
Extends the life of the injection pump and the injectors.
Extends the life of the primary filter.
Protects and extends the life of the engine.
No internal or external parts requiring service or replacement.

ECOLOGICAL BENEFITS
Increases the operating life of fuel filters.
The major component of fuel filters is paper. Use of an FP-50 Turbo
fuel purifier results in fewer trees being cut each year.
Reduction in land fill due to fewer fuel filter replacements.
Providing fuel that is free of water and suspended particulates is the first
step in exhaust emissions control.
Significant improvement in exhaust emissions. Tests on these
fuel purifier's show that smoke emissions were reduced by
17.3%, carbon monoxide emissions by 10.4%, and nitrogen oxides by
5.9%.








Fuel Purifier - Model FP 400
Nominal Flow: 2 gal/min (7.6 lts/min)
In & Out Couplings: 1/2" NPT
Top Port: 1/2" NPT
Sensor Port *: 1/8" NPT
Drain Valve: Comm/Brass 1/2" Valve
Height: 12.0" Strap mount
Width: 4.5" (114.3 mm)
Gross Weight: 9 lbs.
*Water Sensor and Heater are optional items.

Applications
  • Gen Sets
  • Heavy Duty Diesel Trucks
  • Machinery
  • Agricultural Equipment
  • Yachts - Marine


Model FP 400 - Universal Fuel Purifier



Model FP 4000 - Universal Fuel Purifieroptional stand







Model

FP 400

Nominal Flow

2 gal/min
7.6 lts/min

In & Out Couplings

1/2 inch NPT

Top Port

1/2 inch NPT

Sensor Port1

1/8 inch NPT

Drain Valve

1/2 Inch

Drain Valve Material

Comm/Brass

Height

12.0 inch Strap mount

Width

4.5 Inch
114.3 mm

Gross Weight

9 lb

Finish

Black

Product

Universal Fuel Purifier

Options

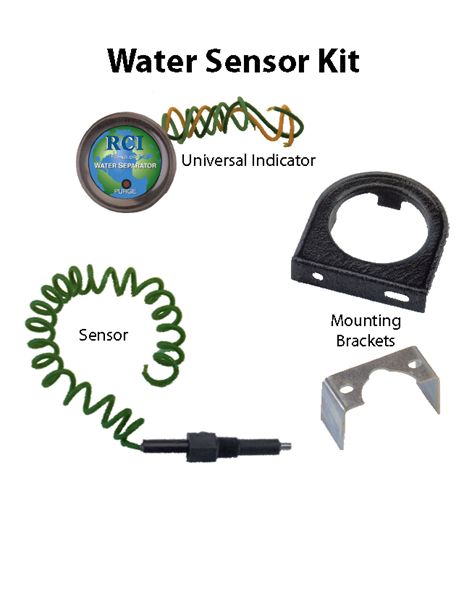

Water Sensor
Water Sensor Kits
Water Sensor and Heater are optional items

Click here for more information regarding the Water Sensor & Alarm Kit
Click here for optional Heater Kit

Call for Pricing!!  510-253-5883





Item # Product Price
FP 400 Turbo Fuel Purifier $ 0.00
Sale price:$ 0.00
